Medium Voltage Dry-Type Transformer

Unit substation dry-type transformers are designed for medium voltage power distribution where liquid-cooling is not an option, such as indoor power distribution line-ups, or outdoor areas with environmental concerns.

[object Object]

Capabilities Tech Specs Get Started

Download Brochure Get a Quote

Capabilities

the core of a medium voltage dry type transformer

Maddox medium voltage dry-types are designed, built, and tested in accordance with the highest industry standards including NEMA, ANSI C.57, DOE, and IEEE as applicable. They can be configured for general purpose and unit substation applications and are customizable to give you greater control over your unit’s function and safety.

Product Scope

300 kVA - 5,000 kVA
Up to 35,000v

Technical Specs

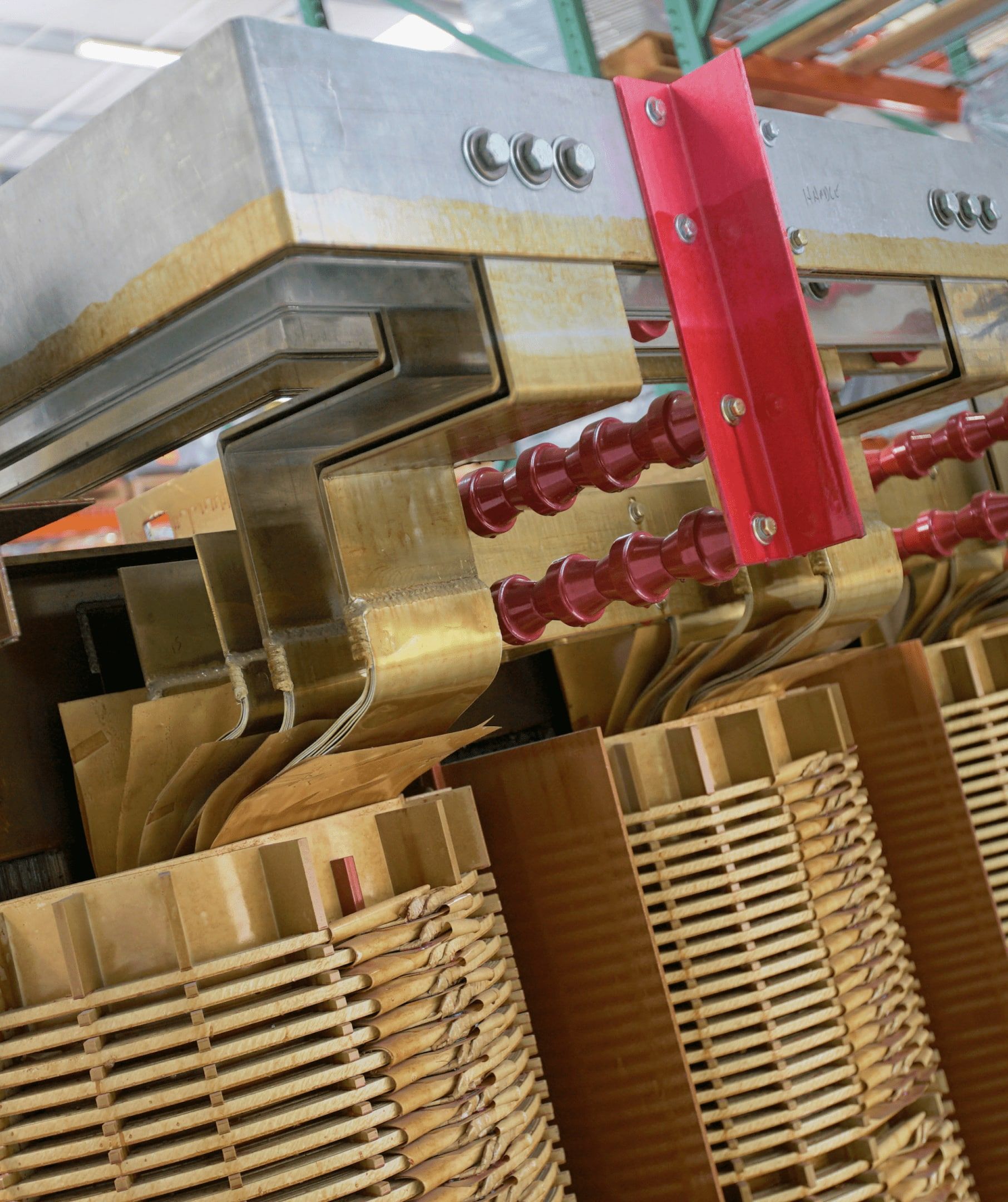

Medium voltage dry type transformer core and coil

Standard specs

Self-cooled (AA)
Aluminum windings
Voltage adjustment taps
Impedance 5.75% (±7.5%)
NEMA 1 indoor enclosure
High-grade silicon-steel core
Ground pads/lugs
150 degree C rise
VPI windings
Stub-up/down bus
Stainless steel hardware

Optional upgrades

Forced air cooling system (AA/FA)
Copper windings
NEMA 3R outdoor enclosure
Lightning arresters
80C or 115C degree rise
Solar step-up design
Electrostatic shielding
K-rated design
Cast-coil windings
Bus to ends
Transition section/terminal chambers
Temperature monitoring system
Primary load-interrupter switch
Double-thick varnish for corruption protection

Get Started

We make it easy to get a quote and order a transformer. Follow the steps below to get started.

01

Request a Quote

Call or fill out the form below to get a quote. Most quotes are turned around the same or next-day.

02

Place your order

Send us a purchase order, or give us a credit card number, and your dedicated customer service rep will send you an order confirmation and answer any questions you may have.

03

Receive your transformer

We’ll handle all transportation and logistics. Maddox has the shortest lead times in the industry so you can get the power on when you need it.
